Design No. : 373100-001

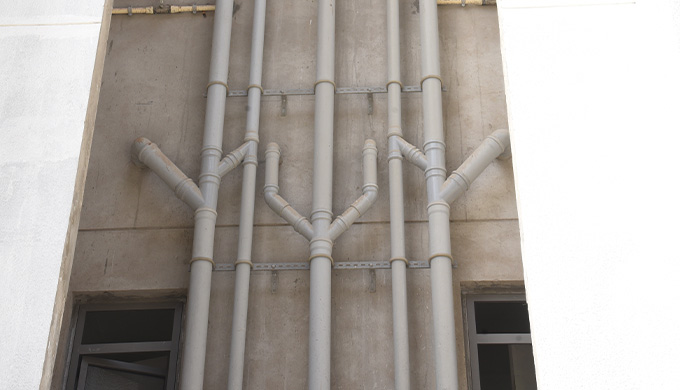

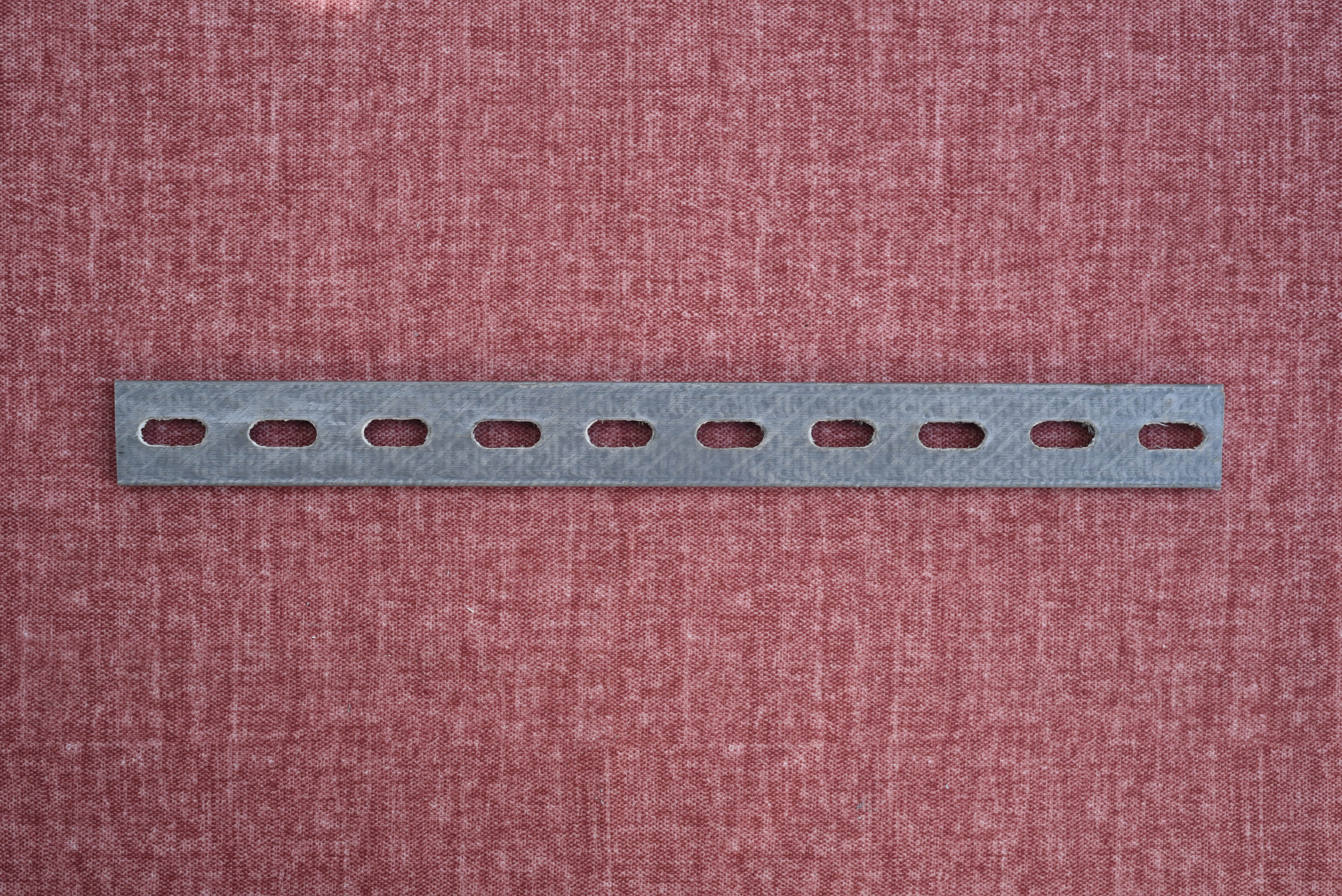

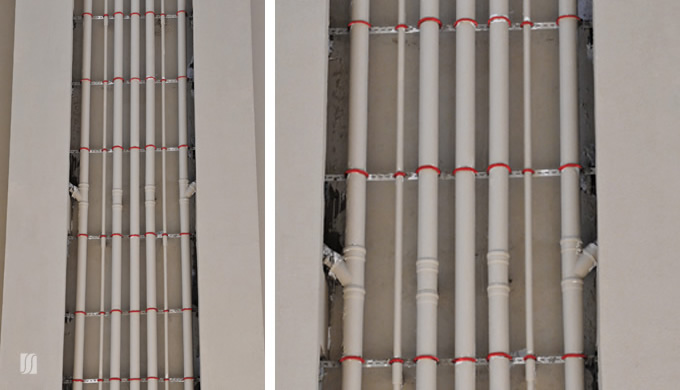

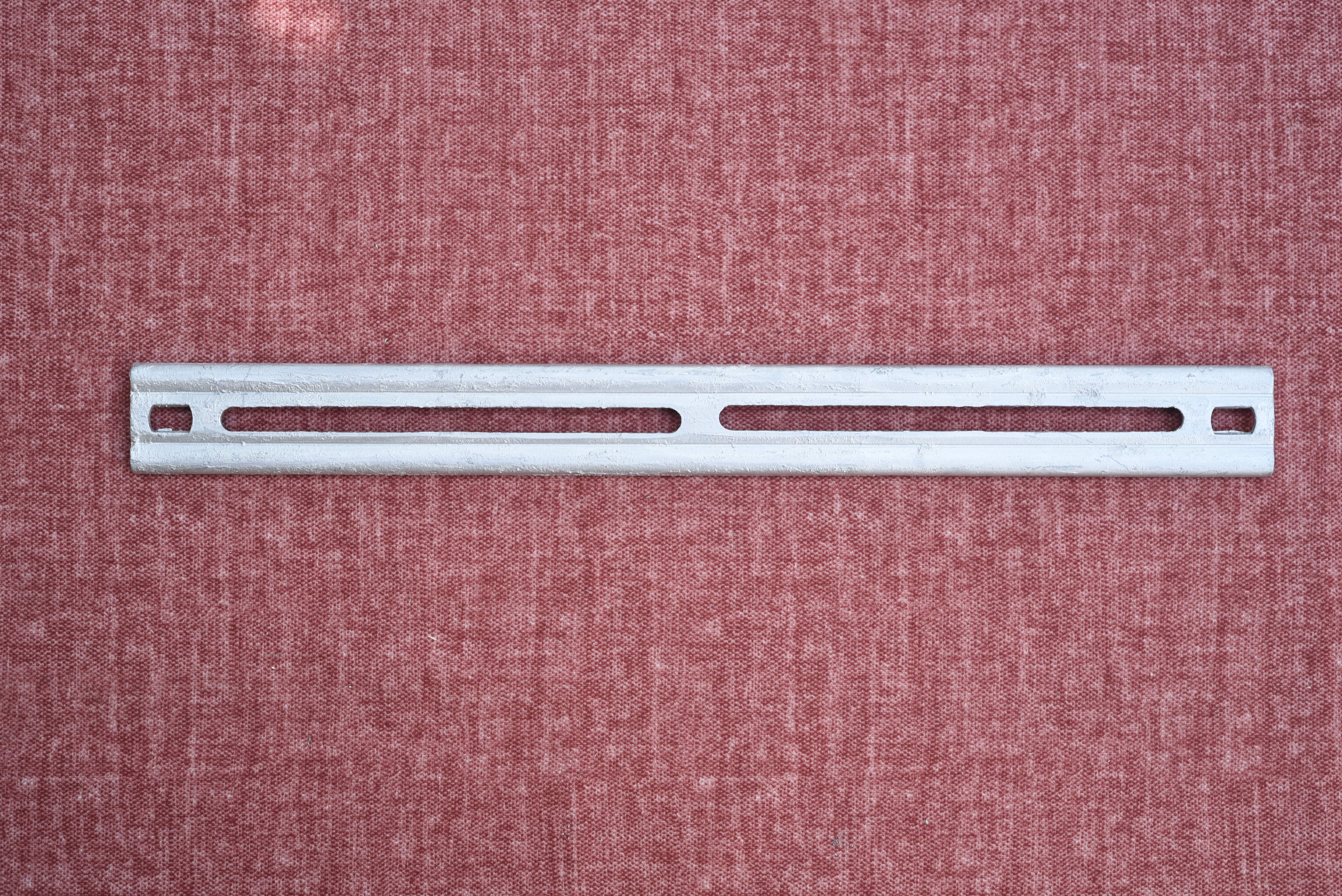

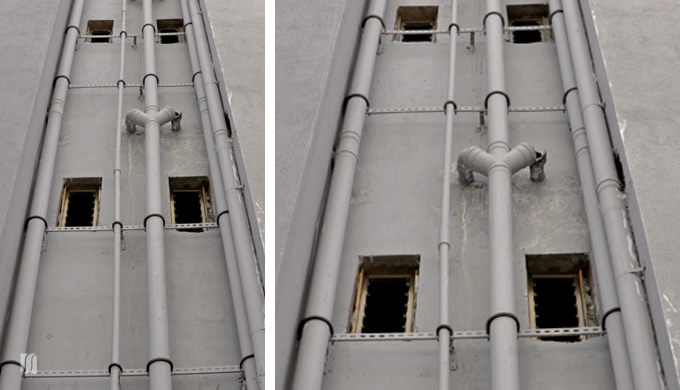

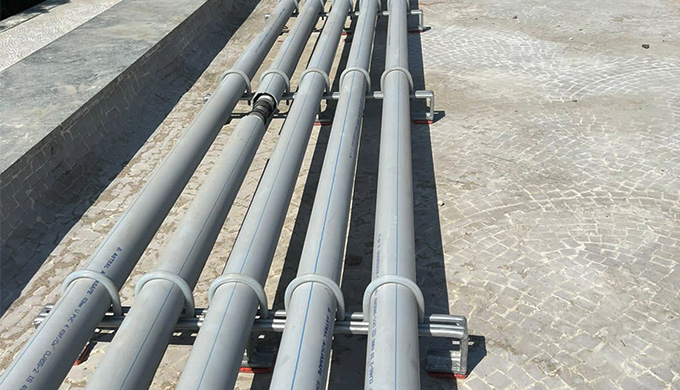

Specially designed Continuous Slotted channel for easy installation

Available in customized sizes as per requirement in projects.

Reference	Channel Size
	mm	inches
SES4 001	250	10"
SES4 002	300	12"
SES4 003	375	15"
SES4 004	450	18"
SES4 005	600	24"
SES4 006	750	30"

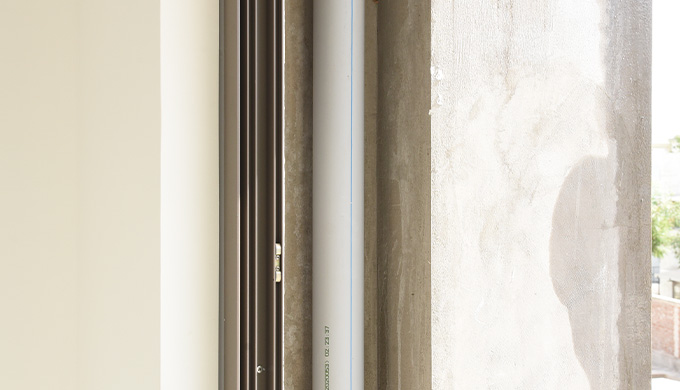

(Fibre Reinforced Polymer)
8' Long X 3.5mm approx.

Also available in G.I.

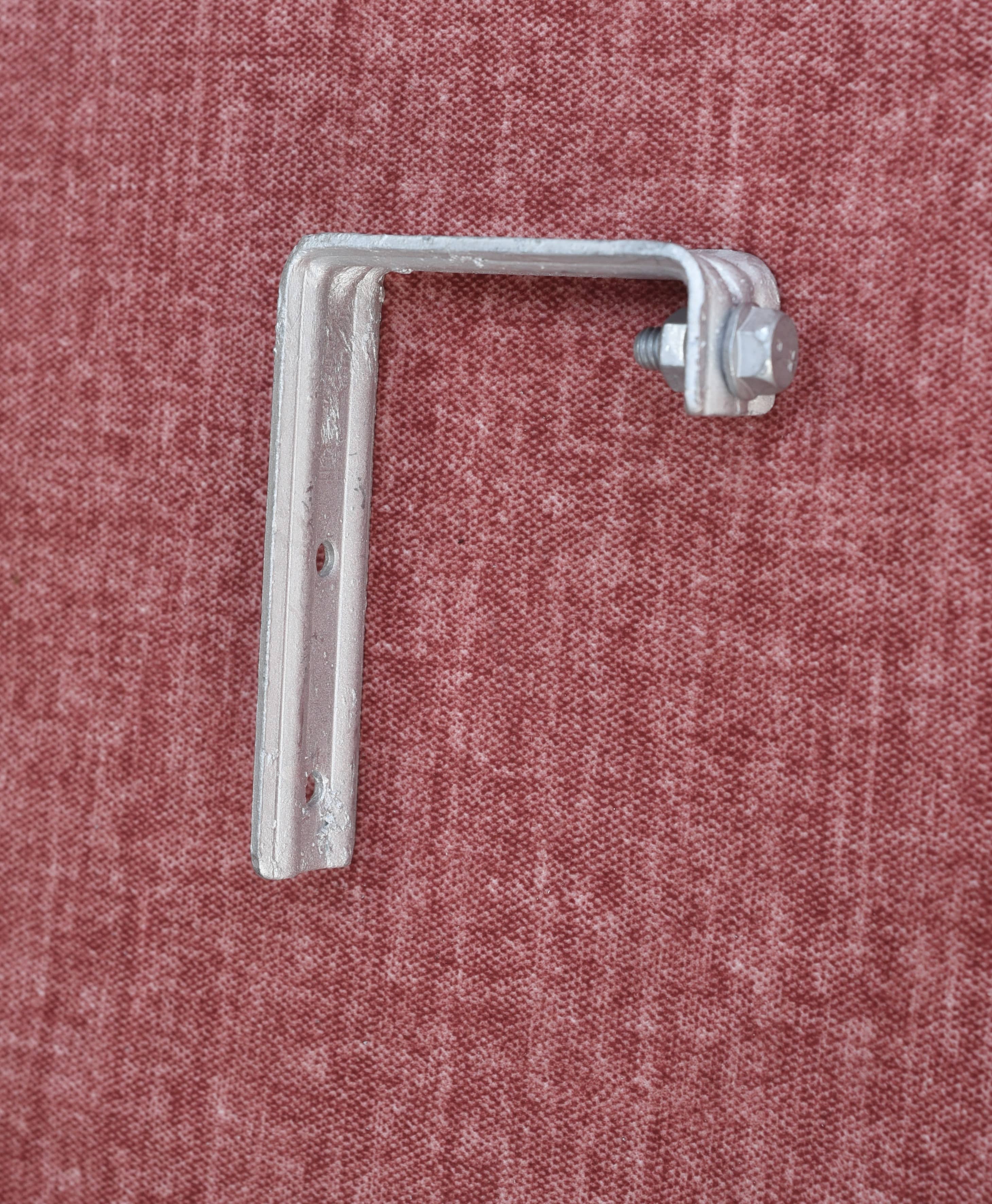

Design No. : 373099-001

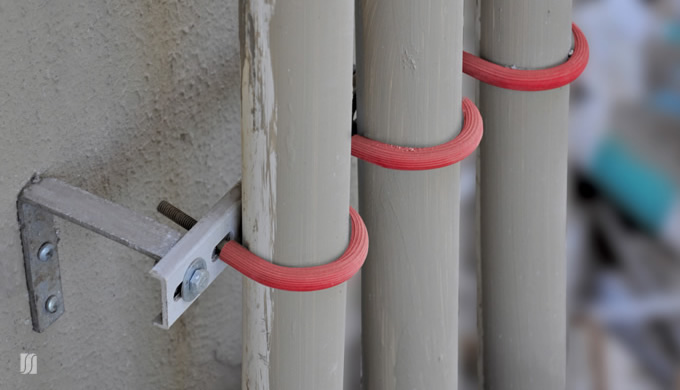

Profile Bracket is specially designed with ribs and notches which reduces the weight on the built structure which ensures better strength with superior stability.

32 mm width x 3 mm thick
thickness approx. (1 to 8 inch regular size) & customized sizes on demand.

Reference	Distance from in Inches
SEPB 201	1"
SEPB 202	2"
SEPB 203	3"
SEPB 204	4"
SEPB 205	5"
SEPB 206	6"
SEPB 207	7"
SEPB 208	8"
SEPB 209	9"

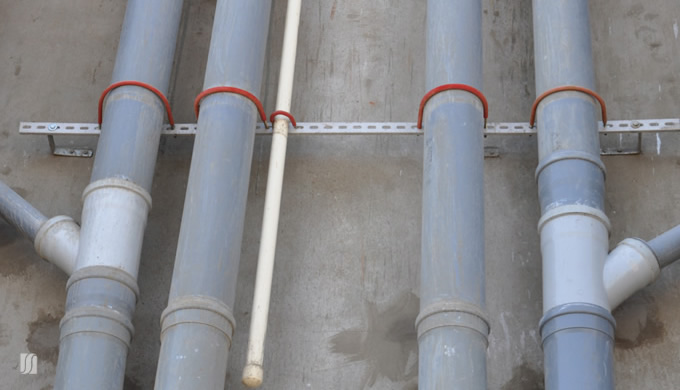

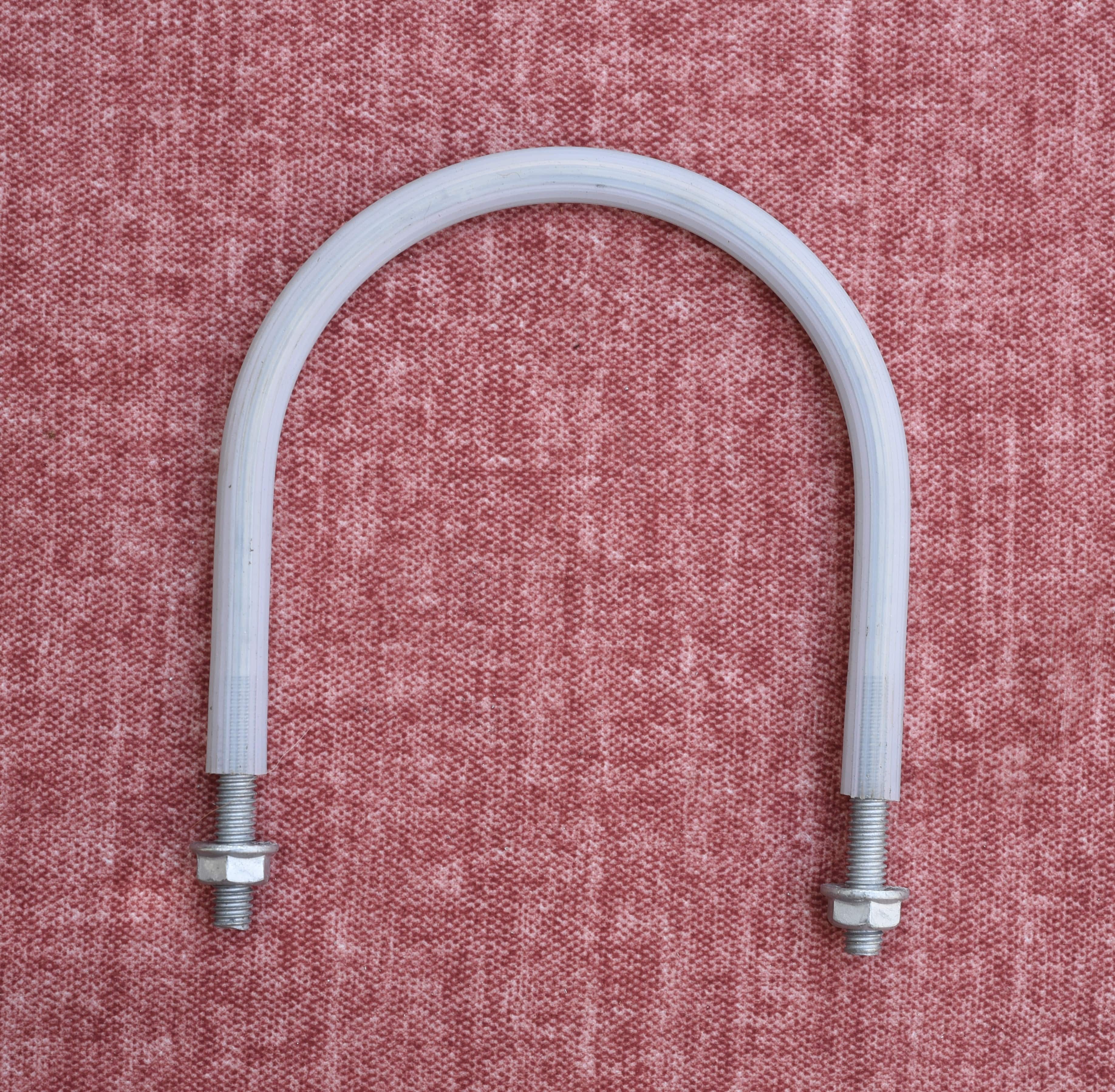

Silicon Rubber: It provides cushioning effect and ensures proper grip of the pipe which with stands temperature range from -10 degree C to 200 degree C and also UV resistant.

Reference	Pipe Size
	mm	inches
SEUB 101	15	½"
SEUB 102	20	¾"
SEUB 103	25	1"
SEUB 104	32	1¼"
SEUB 105	40	1½"
SEUB 106	50	2"
SEUB 107	65	2½"
SEUB 108	80	3"
SEUB 109	100	4"
SEUB 110	150	6"
SEUB 111	200	8"

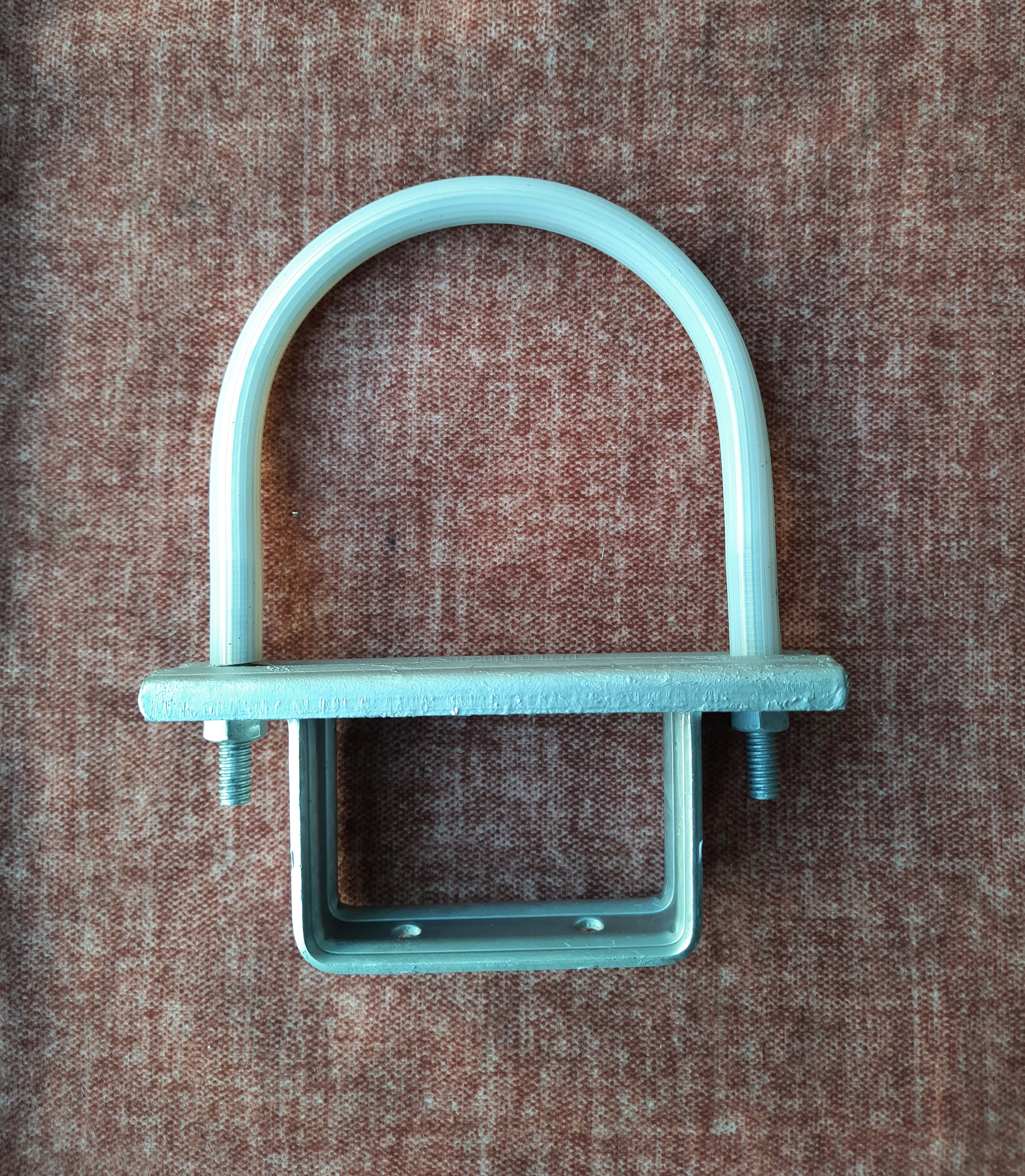

Design No. : 373099-002

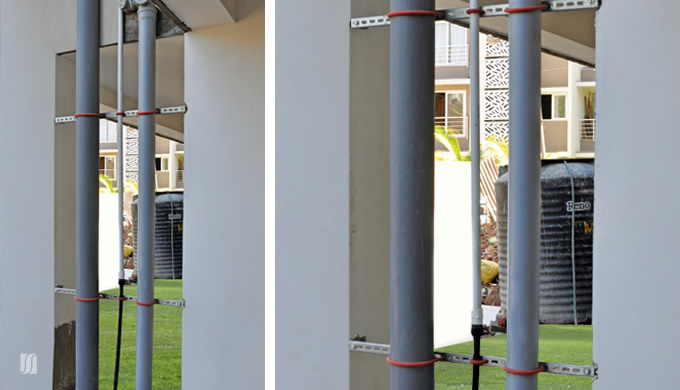

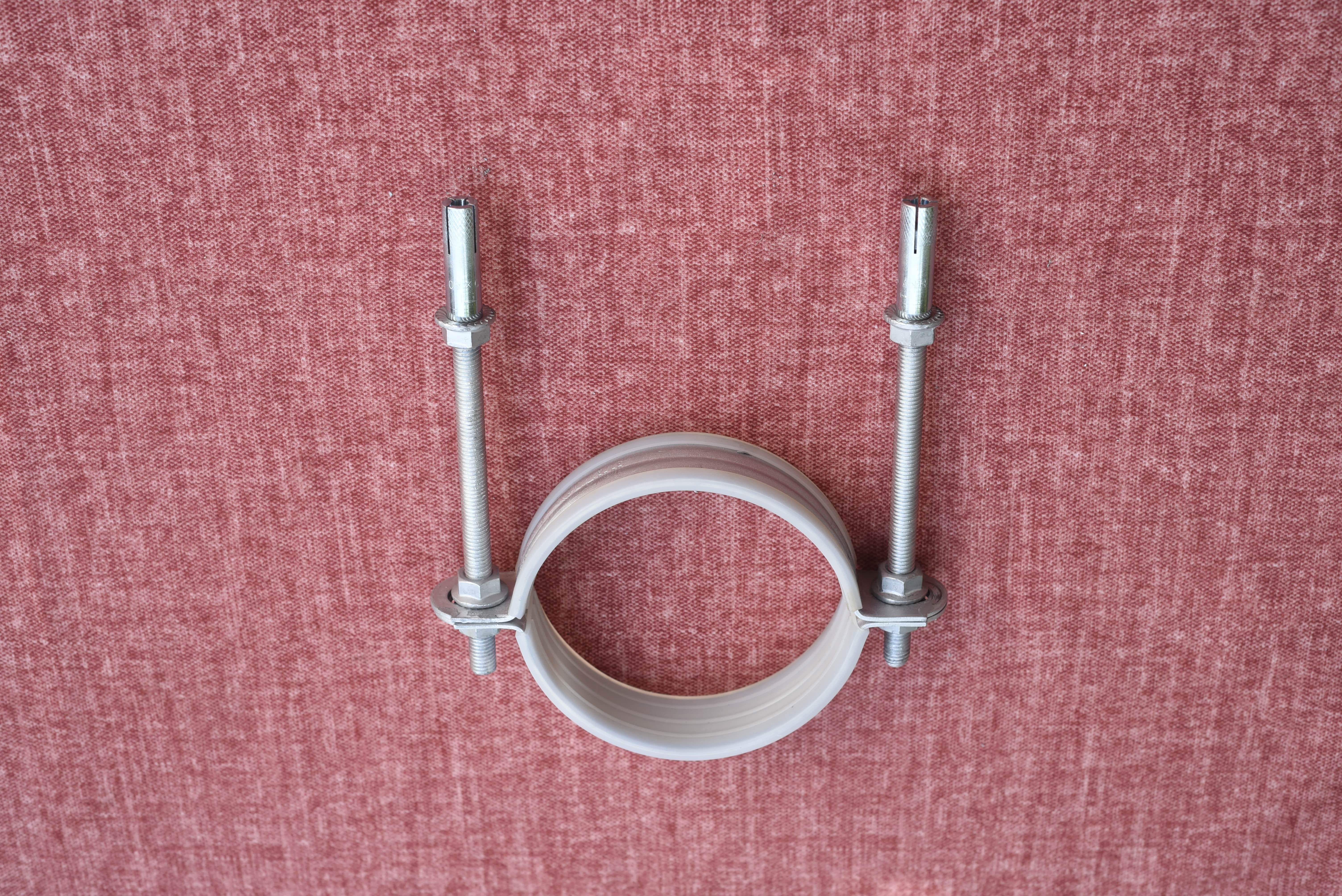

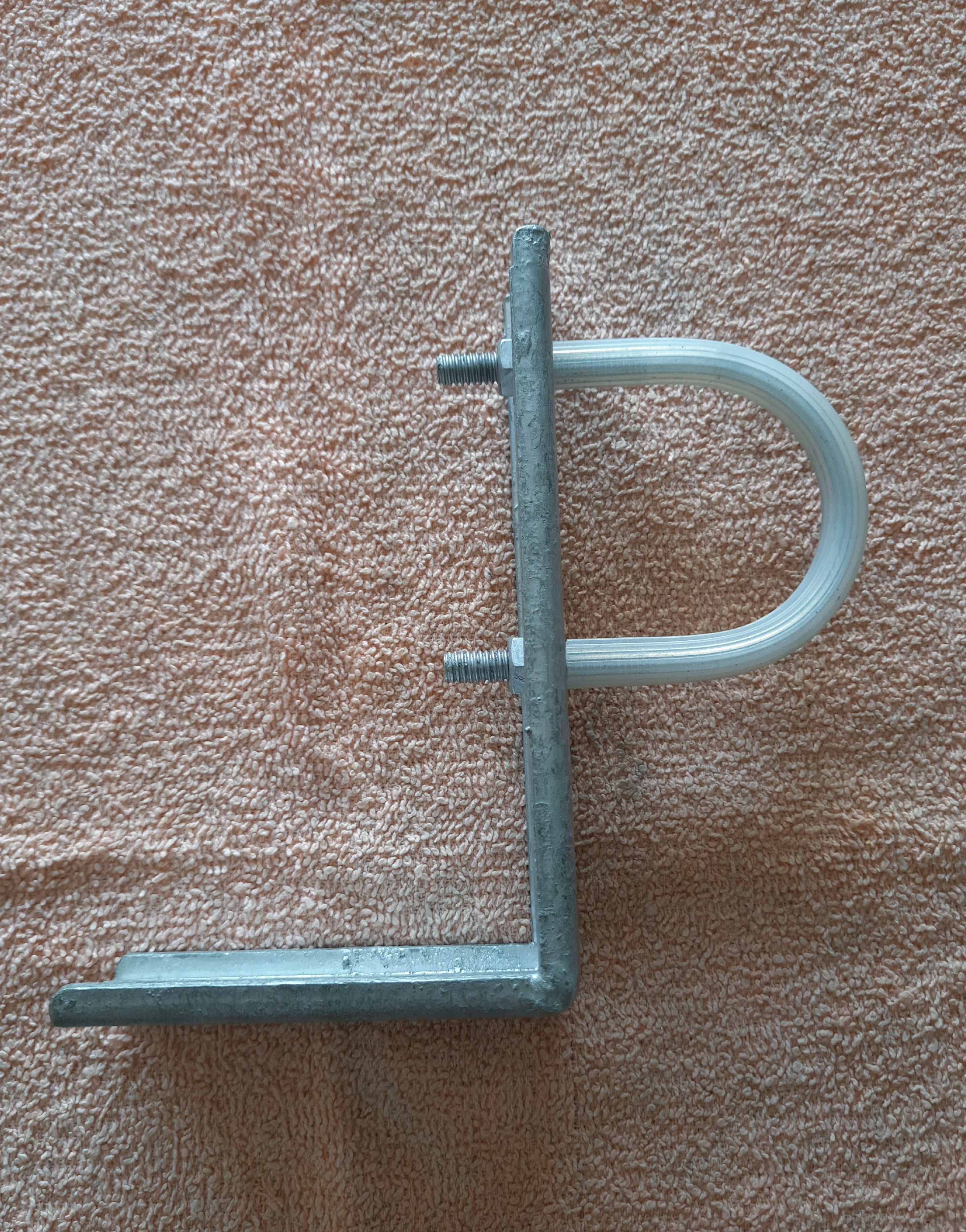

Specially designed clamp for single vertically running pipe.

Reference	Pipe Size
	mm	inches
SEPS 501	100	4"
SEPS 502	150	6"
SEPS 503	75	3"

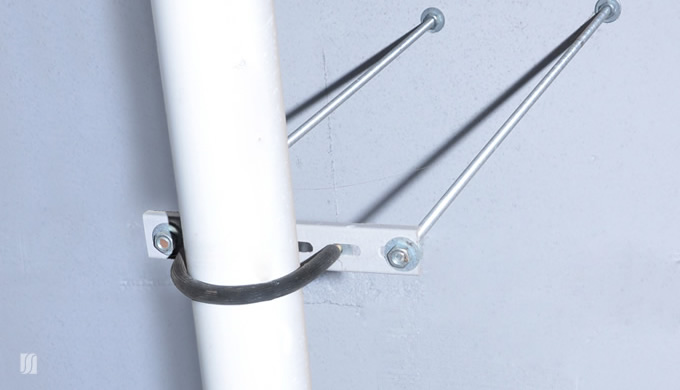

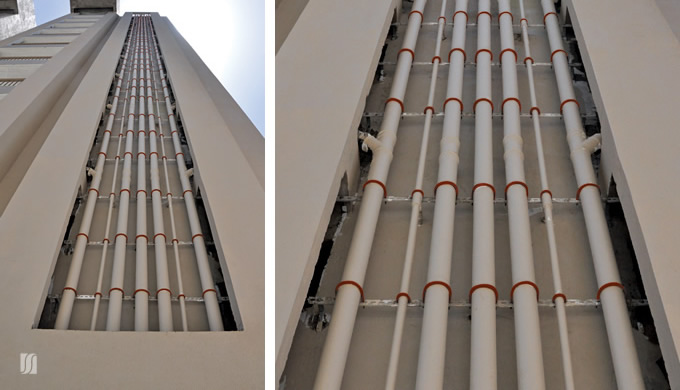

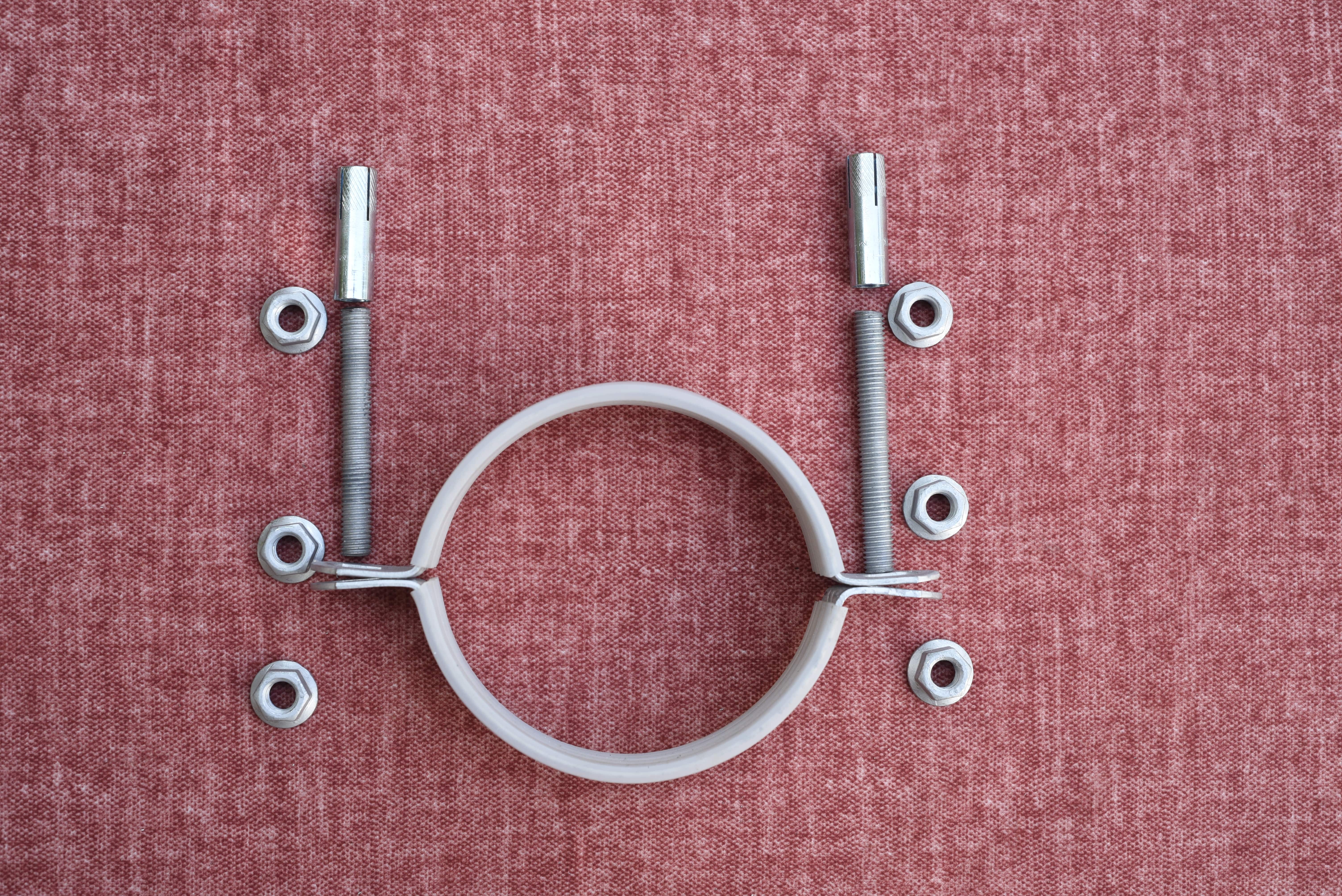

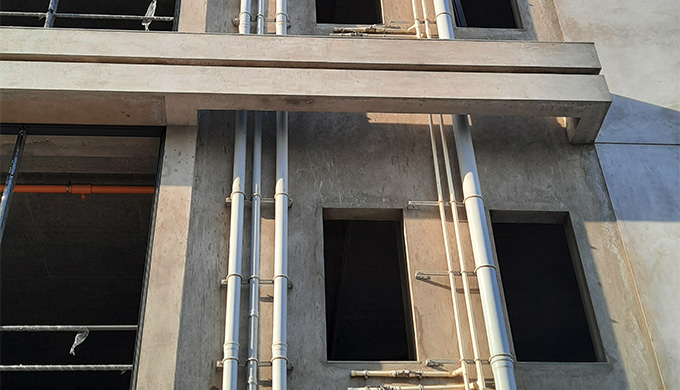

Specially designed support clamping for vertically / horizontally single running pipes

Clamping support for vertically single running pipes of sizes upto 4"

The clamp has been provided with ribbing to give additional strength to it.

Coatings: 1. GI + Zinc Aluminum Flake coated.

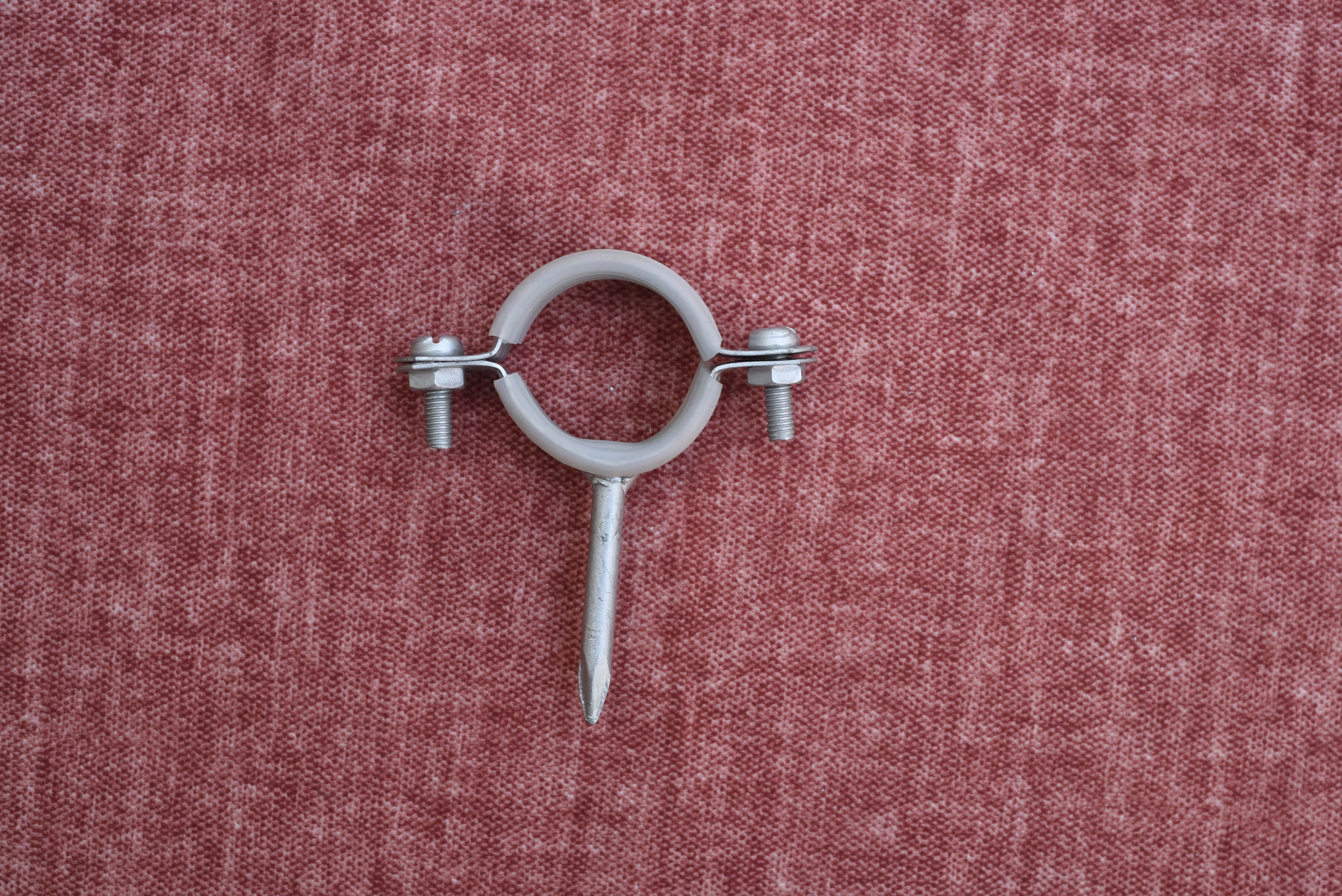

1 to 6 inch regular size & customized sizes available on demand. Pipe Fitting Clamp with Nail

Reference	Pipe Size
	mm	inches
SEPN 401	20	¾"
SEPN 402	25	1"
SEPN 403	32	1¼"
SEPN 404	40	1½"
SEPN 405	50	2"
SEPN 406	65	2½"
SEPN 407	80	3"
SEPN 408	100	4"
SEPN 409	150	6"

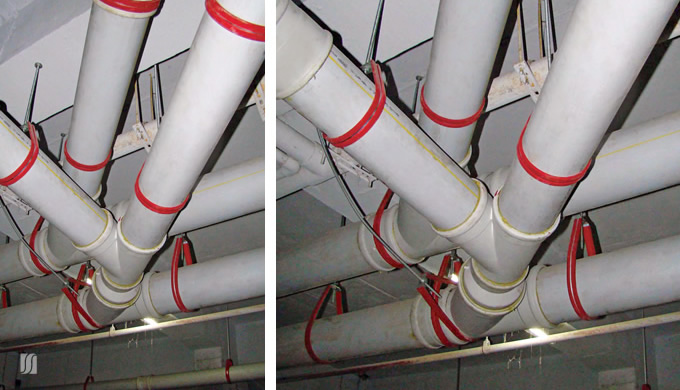

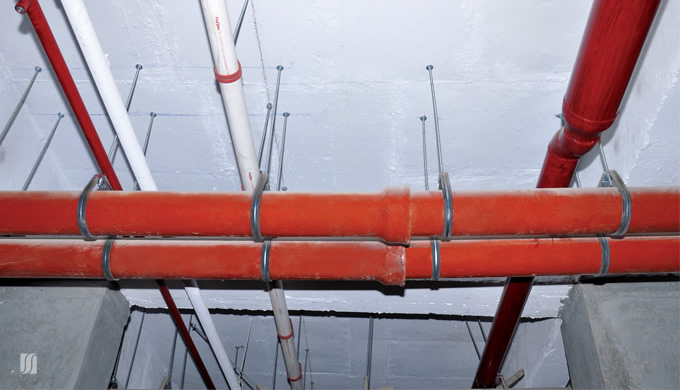

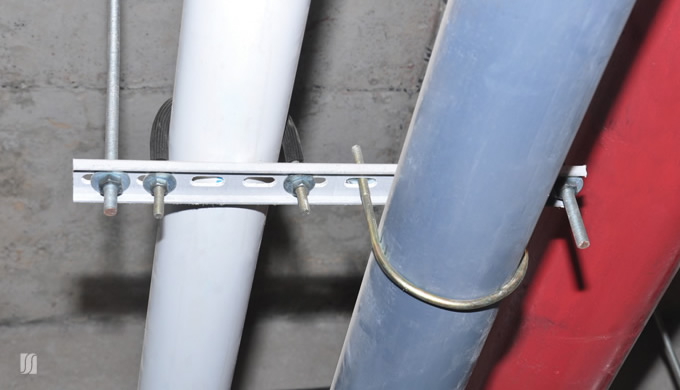

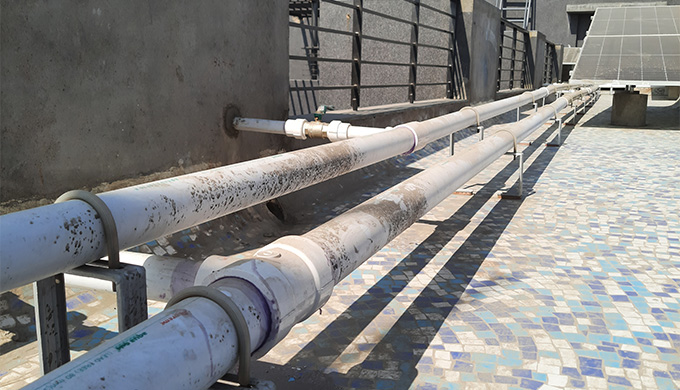

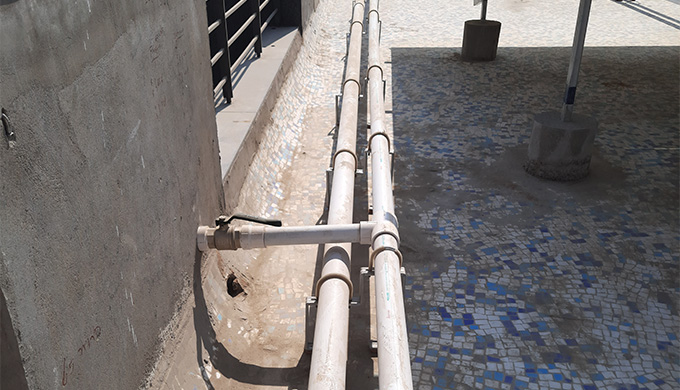

Specially designed LIP channel which can be used for both vertical as well horizontal running pipe.

In difficult situations where more nos. of pipes are running in a duct which cannot be fixed with normal clamping system, with this system the pipes can be arranged up / down, thus can be accommodated.

Especially designed which addresses the problem in high rise building basement pipe clamping and low ceiling height (Podium area).

1 to 8 inch regular size & customized size on demand.

Reference	Pipe Size
	mm	inches
SEDS 001	25	1"
SEDS 002	40	1½"
SEDS 003	50	2"
SEDS 004	65	2½"
SEDS 005	80	3"
SEDS 006	100	4"
SEDS 007	150	6"
SEDS 008	200	8"

The clamp has been provided with ribbing to give additional strength to it.

Coatings: 1. GI + Zinc Aluminum Flake coated

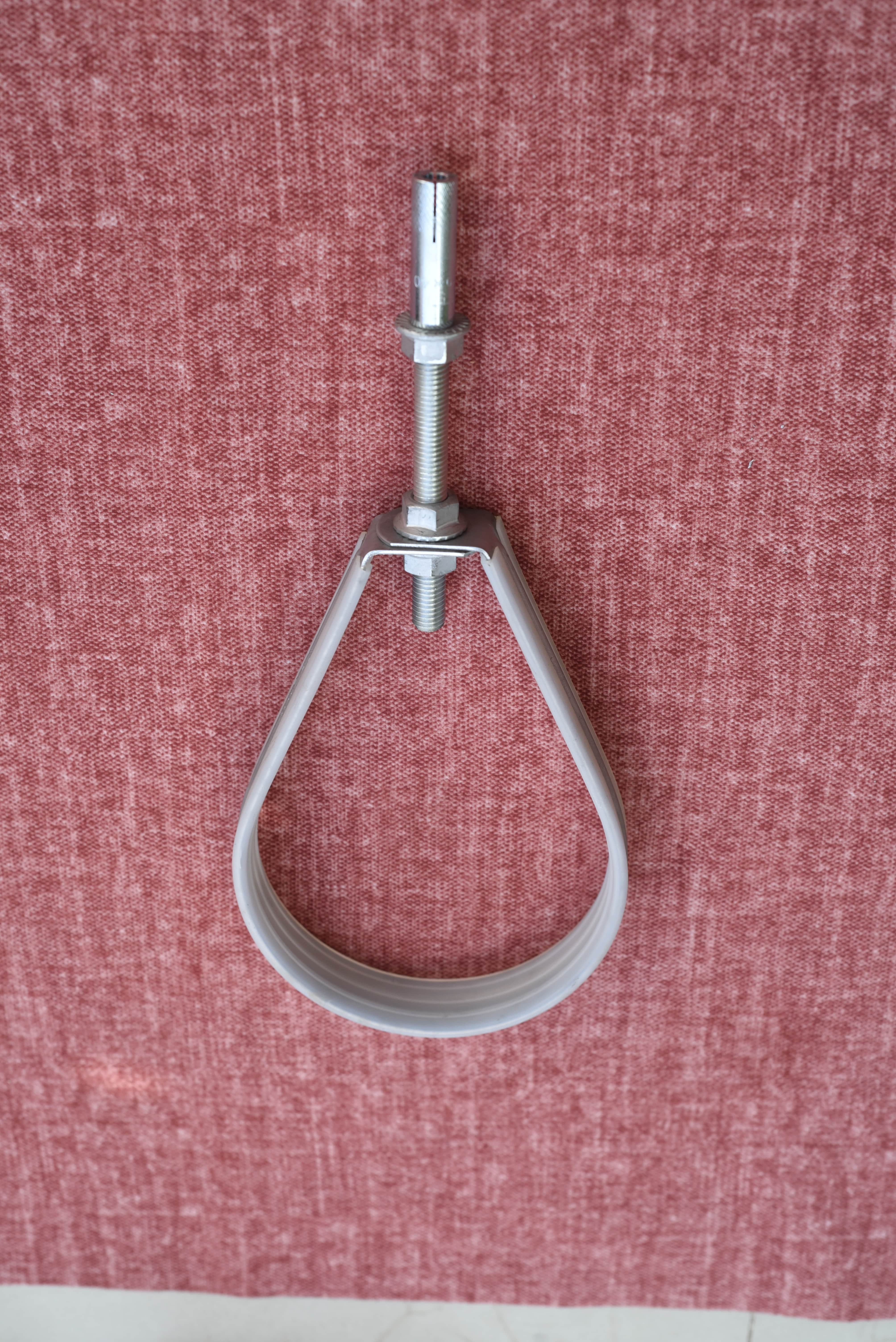

(Oval Clamp)

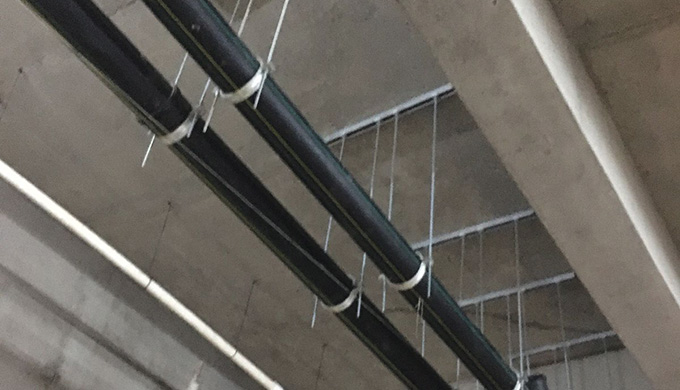

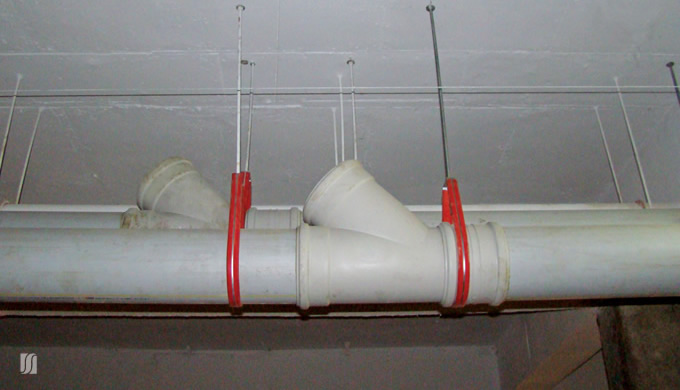

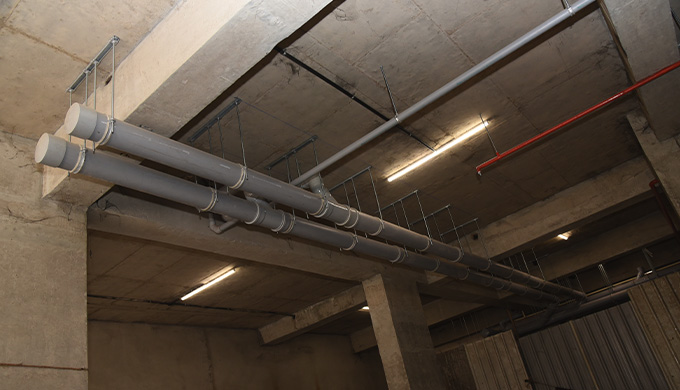

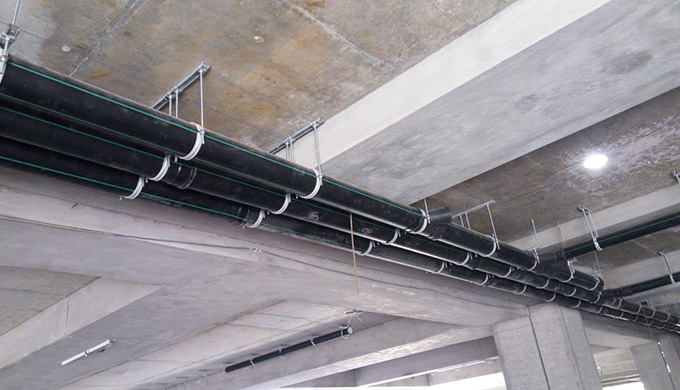

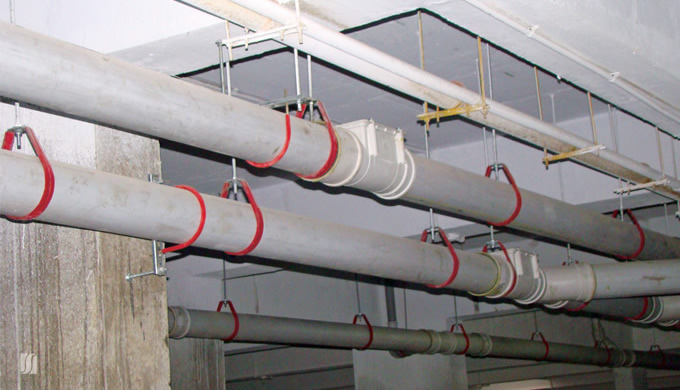

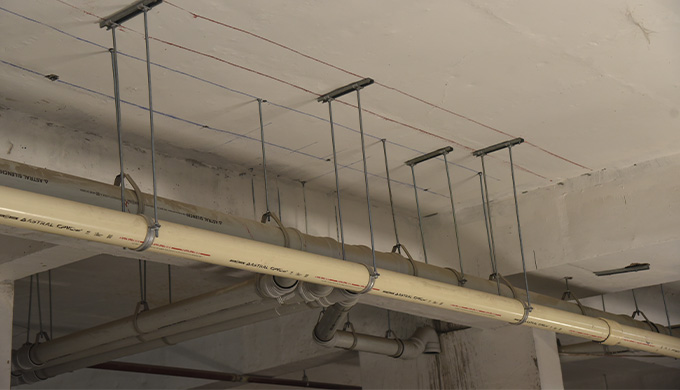

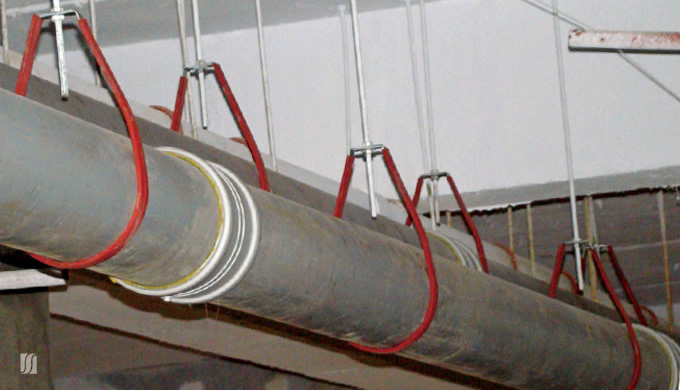

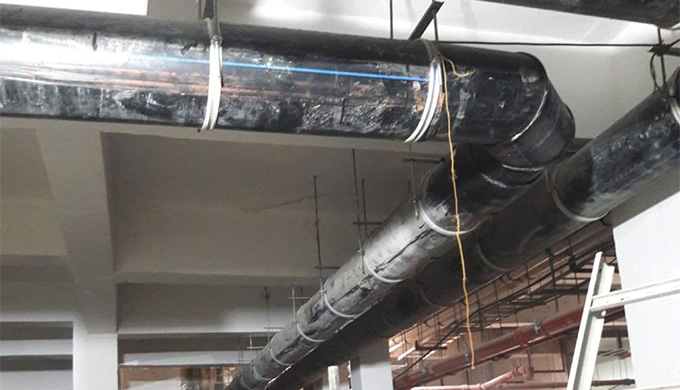

1 to 8 inch regular size & customized size on demand. Hanging Clamp

Reference	Pipe Size
	mm	inches
SEPH 001	25	1"
SEPH 002	40	1½"
SEPH 003	50	2"
SEPH 004	65	2½"
SEPH 005	80	3"
SEPH 006	100	4"
SEPH 007	150	6"
SEPH 008	200	8"

The clamp has been provided with ribbing to give additional strength to it.

Coatings: 1. GI + Zinc Aluminum Flake coated.

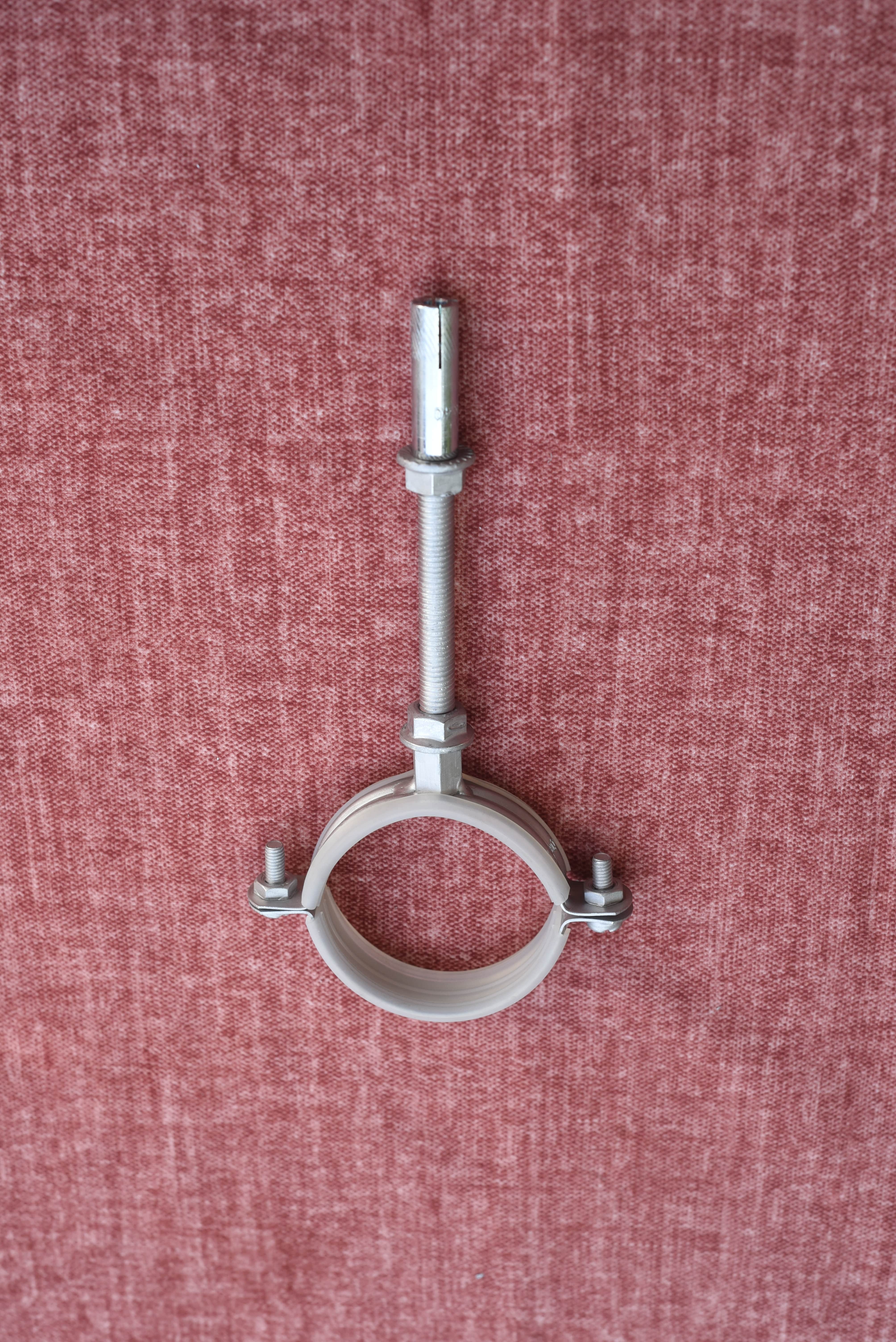

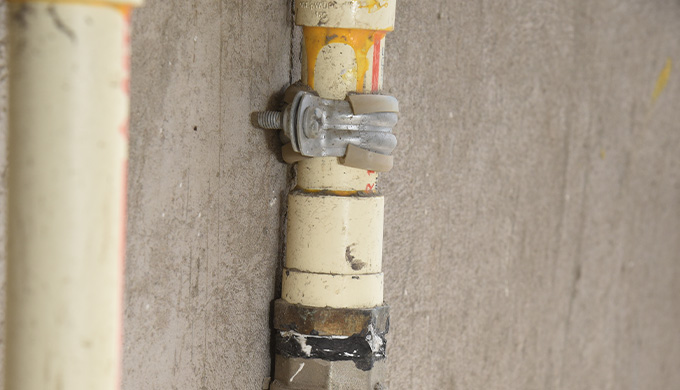

¾ to 6 inch regular size and customized sizes on demand.Pipe Fitting Clamp with Nut

Reference	Pipe Size
	mm	inches
SEPF 301	20	¾"
SEPF 302	25	1"
SEPF 303	32	1¼"
SEPF 304	40	1½"
SEPF 305	50	2"
SEPF 306	65	2½"
SEPF 307	80	3"
SEPF 308	100	4"
SEPF 309	150	6"
